air-assisted pneumatic spray pumps, Equipment Sector, Industry, LARIUS

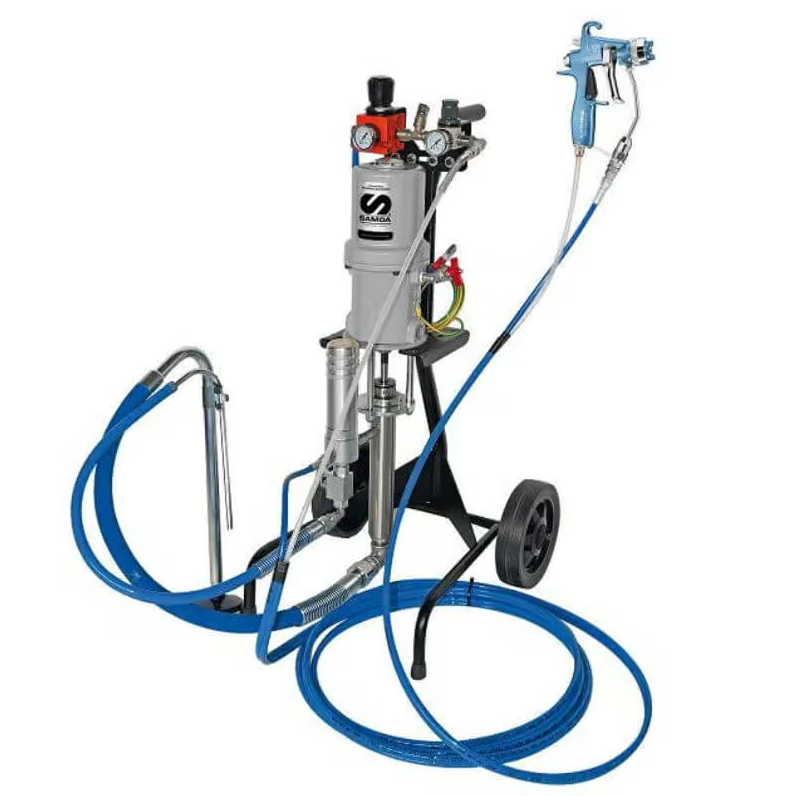

VEGA 341 Trolley version
| Version | Cart |
| Material | Stainless Steel |
| Max. air pressure | 7 bars |
| Max. outlet fluid pressure | 240 bars |
| Air supply inlet | 3/8″ BSPP (F) |
| Material output | 1/4″ BSPP (M) |
| Max. air consumption | 3 bar 180 l/min, 5 bar 380 l/min, 7 bar 550 l/min |
| Effective engine diameter | 3″ – 76 mm |
| Pump stroke | 3″ – 76 mm |
| Flow rate per cycle | 21 cc |
| Max. flow rate 60 cycles/min | 1.3 l/min |
| Gasket material | PTFE + Polyethylene |
| Sound pressure level | <80 dB (A) |
| Weight | 16 kg |
VEGA 34:1 Versione carrello – Pompa pneumatica airless con supporto aria
