Equipment Sector, fluid transfer, LARIUS

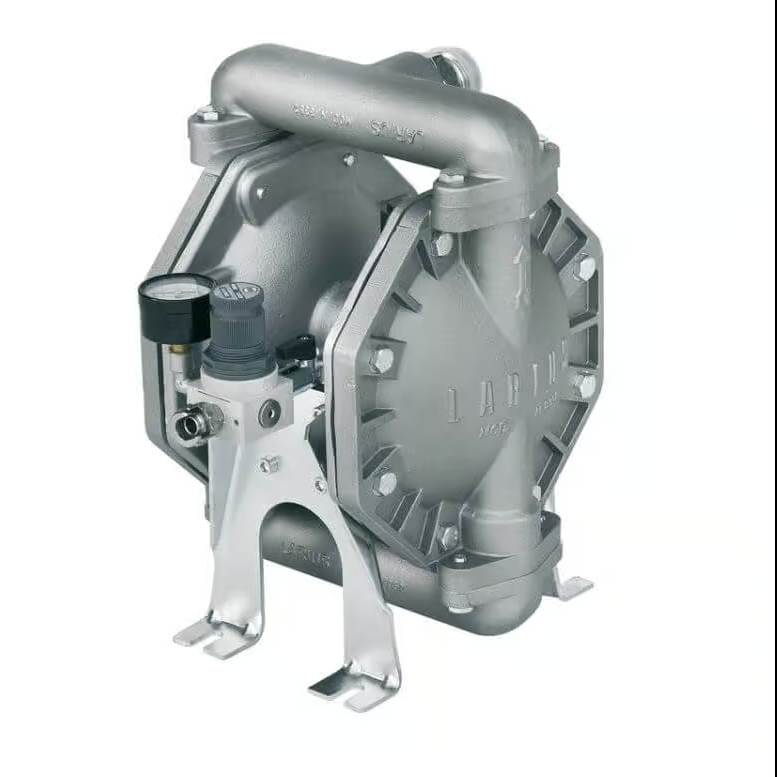

L4 11 Double Diaphragm Transfer Pump
| Flow rate at 60 cycles/min | 40 l/min |
| Air pressure adjustment range | 1-7 bar / 15-100 psi |
| Maximum fluid outlet pressure | 7 bar – 100 psi |
| Air consumption at 60 cycles/min | 3 bar – 190 l/min 5 bar – 320 l/min 7 bar – 440 l/min |
| Air supply inlet | 1/4″ BSPP (F) |
| Material input | 1″ BSPP (M) |
| Material output | 1″ BSPP (M) |
| Product contact membrane material | PTFE |
| Abrasive product contact membrane material | Polyurethane canvas |
| Stainless steel pump materials product contact | AISI 316 – AISI 303 – PTFE |
| Aluminum pump materials product contact | AISI 12 Aluminum – UNI 5076 – PTFE Galvanized Steel – AISI 303 Stainless Steel |
| h meters of suction | 5 m |
| Maximum Ø of pumpable solids | 3 mm |
