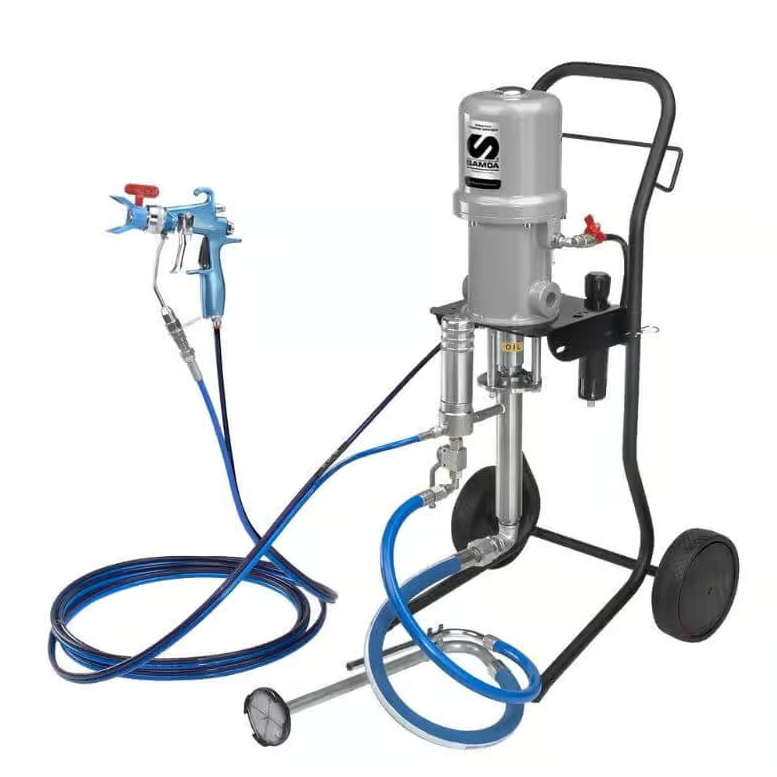

GHIBLI 301 Trolley version
| Version | Cart |
| Material | Carbon Steel, Stainless Steel |
| Max. air pressure | 7 bars |
| Max. outlet fluid pressure | 210 bars |
| Air supply inlet | 3/8″ BSPP (F) |
| Material output | 1/4″ BSPP (M) |
| Max. air consumption | 3 bar 400 l/min, 5 bar 800 l/min, 7 bar 850 l/min |
| Effective engine diameter | 4″ 1/4 – 108 mm |
| Pump stroke | 4″ – 102 mm |
| Flow rate per cycle | 63 cc |
| Max. flow rate 60 cycles/min | 3.8 l/min |
| Gasket material | PTFE + Polyethylene |
| Sound pressure level | <80 dB (A) |
| Weight | 30 kg |
GHIBLI 30:1 Versione carrello – Pompa pneumatica airless con supporto aria
